Description

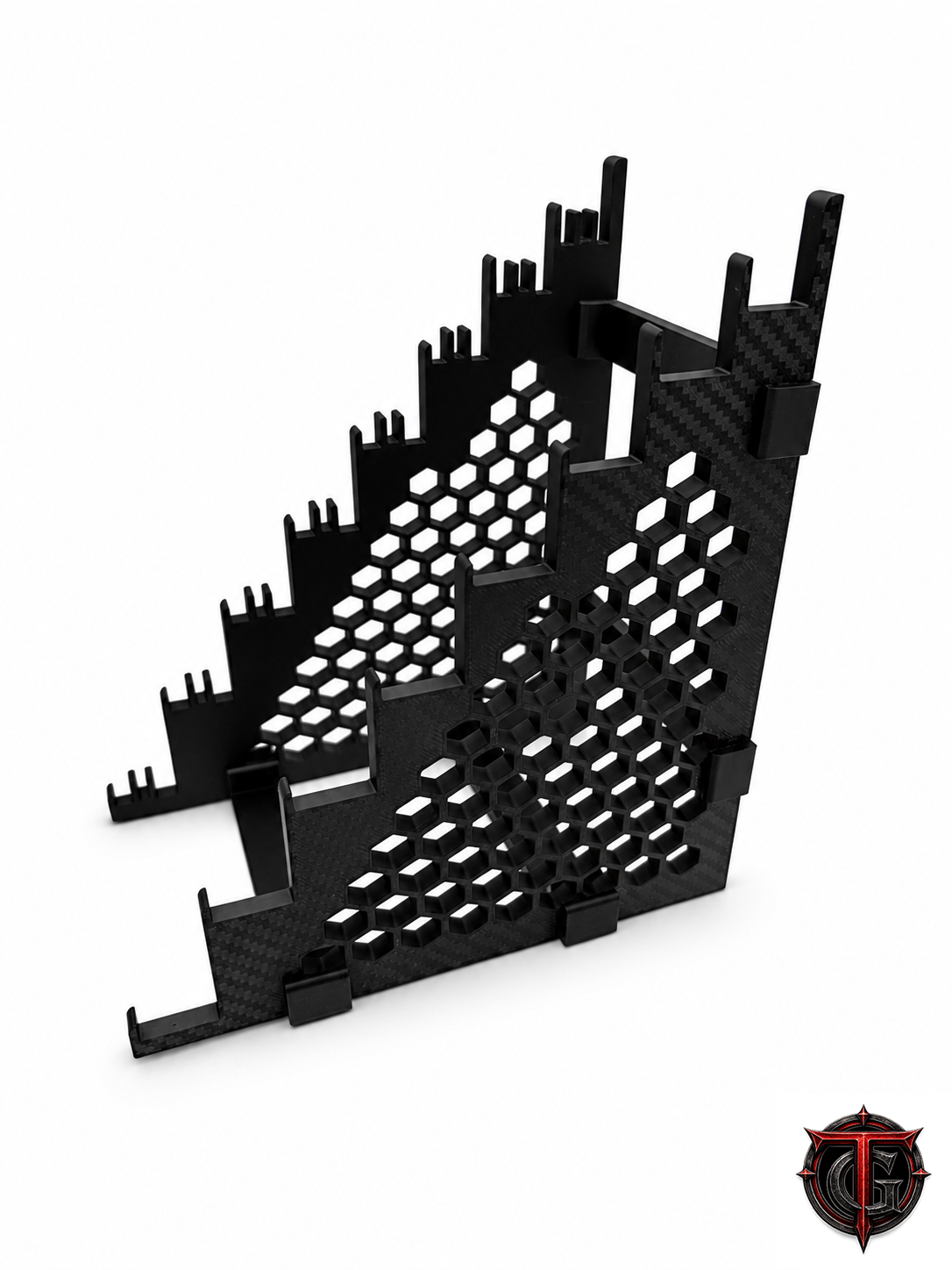

Eight Fixed Blades, Each One Standing On Its Own.
Fixed blades don't sit in a slot the way a folder does. They need a groove that takes the blade and a rest for the handle, spaced to match the knife. That is exactly what this stand is.
Each of the eight tiers pairs a 65° V-groove on one side with a flat handle shelf on the other. The blade drops edge-down into the V, the handle sits on the shelf behind its retaining lip, and the knife holds its position without anything clamping it.
The groove opens to 1/4" and runs 65°, so the blade is carried on its flats — the wider the stock, the higher it rides. The bottom of the V is not a point: it finishes in a 1 mm flat, so a thin blade lands on a small flat face rather than being driven into a sharp corner. Everything the knife touches is matte PLA, far softer than blade steel, and there is no metal anywhere in the stand.

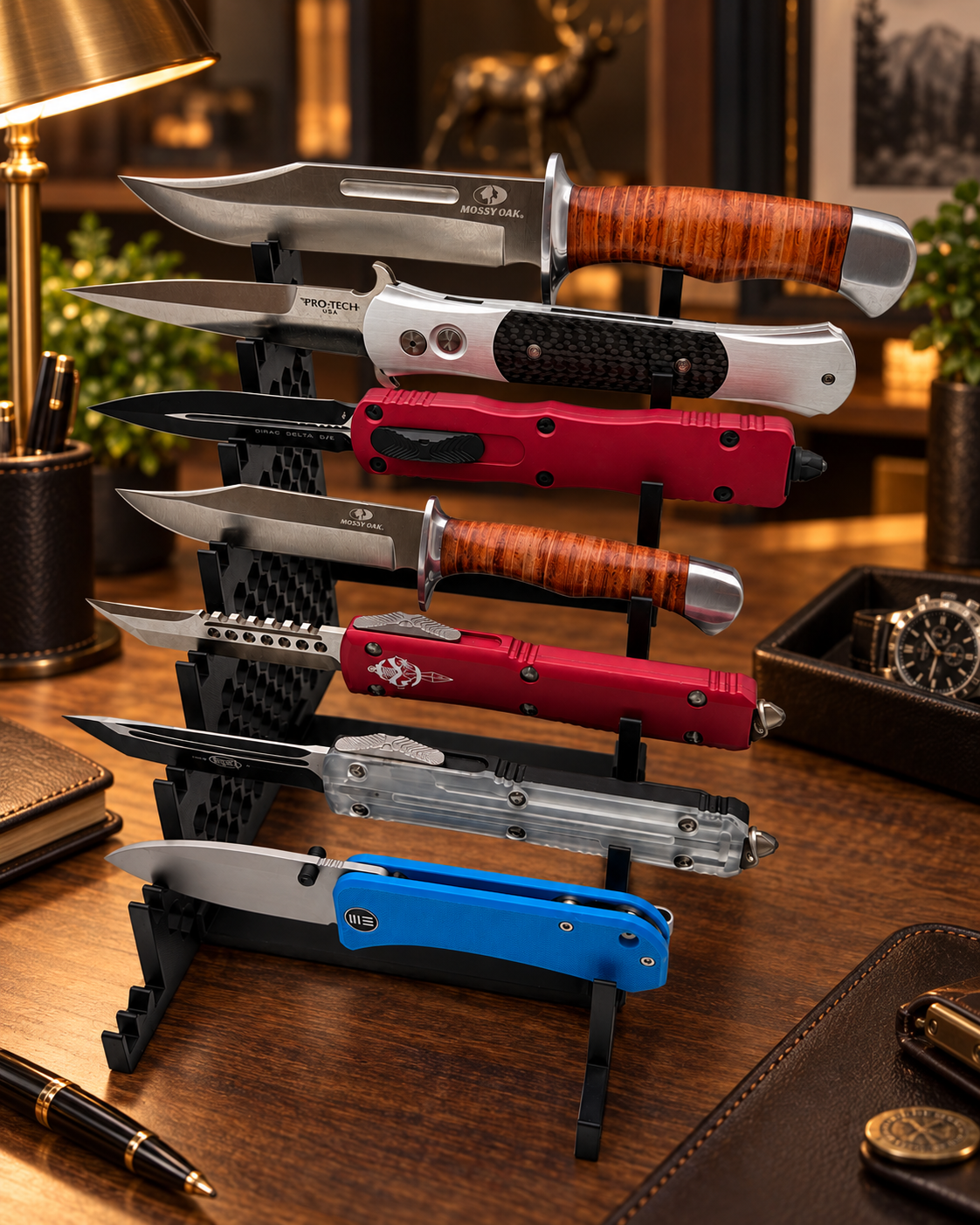

Eight tiers step back at a 1" pitch, so every blade in the rack is visible at once rather than the front knife hiding the seven behind it. Load it top to bottom and the whole collection reads in a single glance.
It ships flat. Two crossbars have forked ends that slide over the side panels and grip them on a friction fit — no tools, no glue, no hardware, together in under a minute. Flat-pack also means a smaller box and less to go wrong in transit.
Matte black side panels in a carbon fiber look finish. Matte matters more with fixed blades than with folders: a satin or mirror-polished blade reads properly against a non-reflective backdrop instead of bouncing light back into the camera. Printed in the USA by Terrain Genesis.
Features
- Holds 8 fixed blade knives, one per tier
- 65° V-groove carries the blade on its flats, with a 1 mm flat at the bottom instead of a sharp vertex
- Takes blade stock up to 1/4" thick
- 7/8" deep handle shelf with a 3/8" retaining lip
- 1" tier spacing keeps all eight blades in view
- Matte PLA throughout — no metal anywhere in the stand, and no blade-on-blade contact
- Tool-free friction fit assembly — no glue, no hardware
- Matte black carbon fiber look side panels
- Printed in the USA by Terrain Genesis

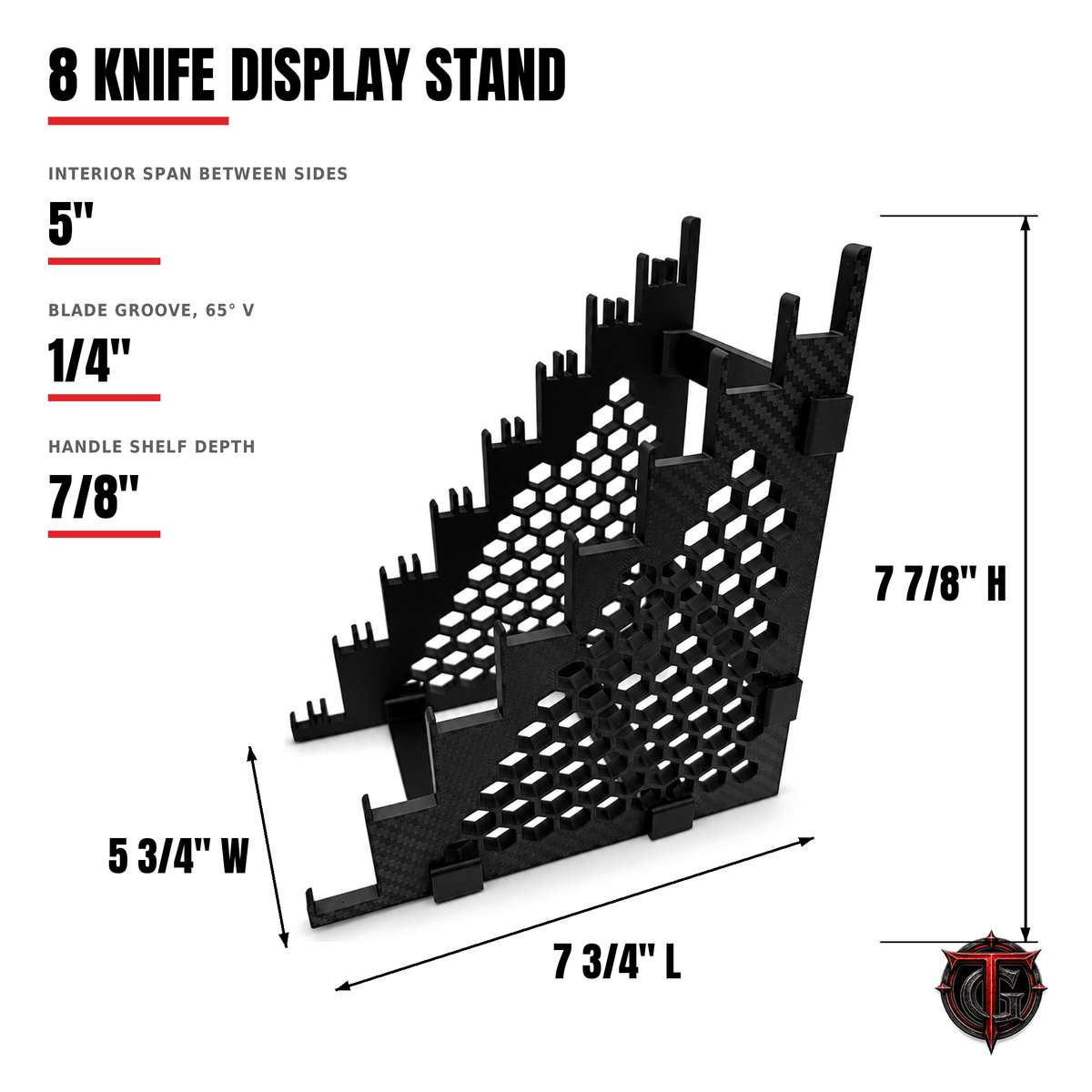

Specifications
- Capacity: 8 fixed blade knives
- Overall dimensions: 7 3/4" deep × 5 3/4" wide × 7 7/8" high
- Interior span between panels: 5" (127 mm)
- Blade groove: 1/4" wide, 65° included angle, 4.2 mm deep, 1 mm flat at the bottom
- Handle shelf: 7/8" deep with a 3/8" retaining lip
- Tier spacing: 1" vertical, 15/16" horizontal step-back
- Panel thickness: 1/4" (6 mm)
- Assembly: two crossbars, forked friction fit — no tools or hardware
- Finish: matte black, carbon fiber look side panels
Will Your Knives Fit?
Two things decide it.
Blade thickness — 1/4" or less. Measure the stock at its thickest point, usually just ahead of the handle. Anything at or under 1/4" seats in the groove. Thicker stock rides high and won't sit securely. Most hunting, bushcraft and camp knives are well inside this.
Overall length — long enough to bridge 5". The panels stand 5" apart, and the knife has to span that gap with its blade in the groove and its handle on the shelf. A knife shorter than 5" overall has nothing to rest on at one end.
Note: Designed for fixed blade knives. Knives shown are not included.
